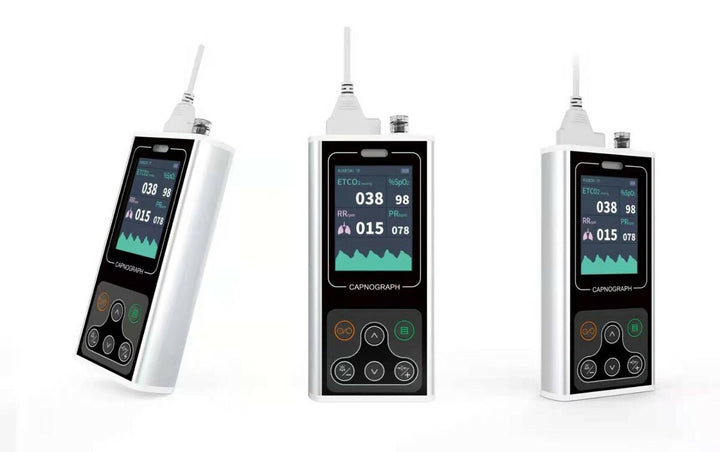

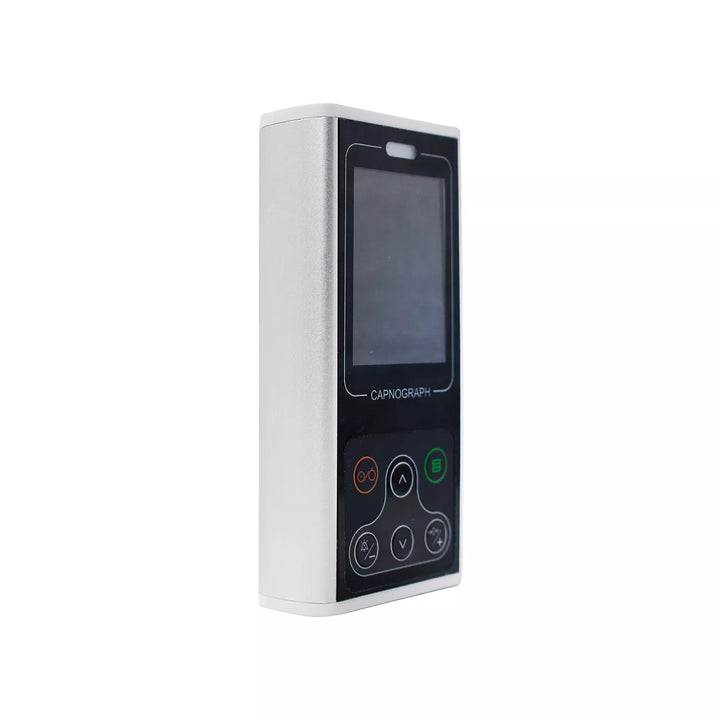

Contec Capnograph CA10S– Side Stream ETCO2 Handheld Monitor
Capnograph adopts sidestream method to measure the end-tidal carbon dioxide, airway respiration rate and other parameters. It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow as well as indirectly reflect the alveolar ventilation standard. Meanwhile, it can also detect the blood oxygen saturation and pulse.
The Capnograph is applicable for use in pre-hospital emergency transfer, emergency department, ICU, operating room, neonatology, respiratory department and other occasions. The application population is adult, pediatric and neonate patients.
Features
1) End-tidal CO2 measurement function
2) Respiration rate measurement function
3) SpO2 measurement function
4) Pulse rate measurement function
5) Over-limit alarm function for EtCO2、Respiration rate,SpO2 and Pulse rate
6) Low battery alarm function
Performance
End-tidal CO2 measurement:
1）Measurement range: 0 ~150mmHg
2）Resolution: 1mmHg
3）Accuracy:
0～40 mmHg：±2 mmHg
41～70 mmHg：±5% of readings
71～100 mmHg：±8% of readings
101～150 mmHg：±10% of readings
Respiration rate measurement:
1）Measurement range: 2rpm～120rbpm
2）Resolution: 1rpm
3）Accuracy: ±1rpm
SpO2 measurement:
1) Measurement range: 30～100 %
2) Resolution: 1%
3) Accuracy:
70～100 %：2 %
0～69 %：undefinition
Pulse rate measurement:
1) Measurement range: 25～250 bpm
2) Resolution: 1bpm
3) Accuracy: ±2 bpm or ±2%,whichever is greater

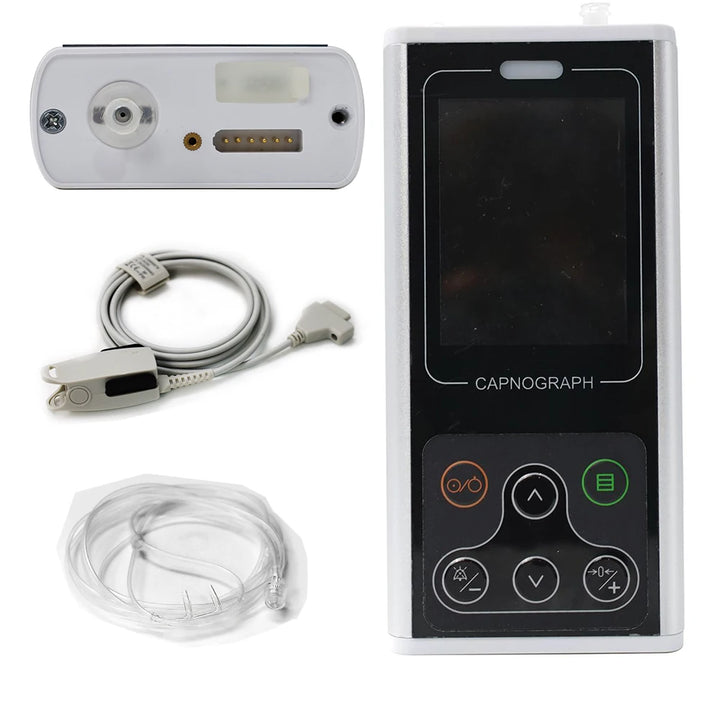

Accessories
User Manual
Blood oxygen probe
Sampling pipe
USB wire
Physical Characteristic
Dimension: 159*72*31 mm
Weight: 270 g
Working environment
Temperature: 5℃~40℃
Relative humidity: 30%~ 75%, no condensation
Atmospheric pressure: 700hPa~1060hPa
Power supply: DC 3.7V (rechargeable lithium batteries)
Input power: ≤1.5VA
