BPL ECG Machine Cardiart 9108

PRODUCT DESCRIPTION

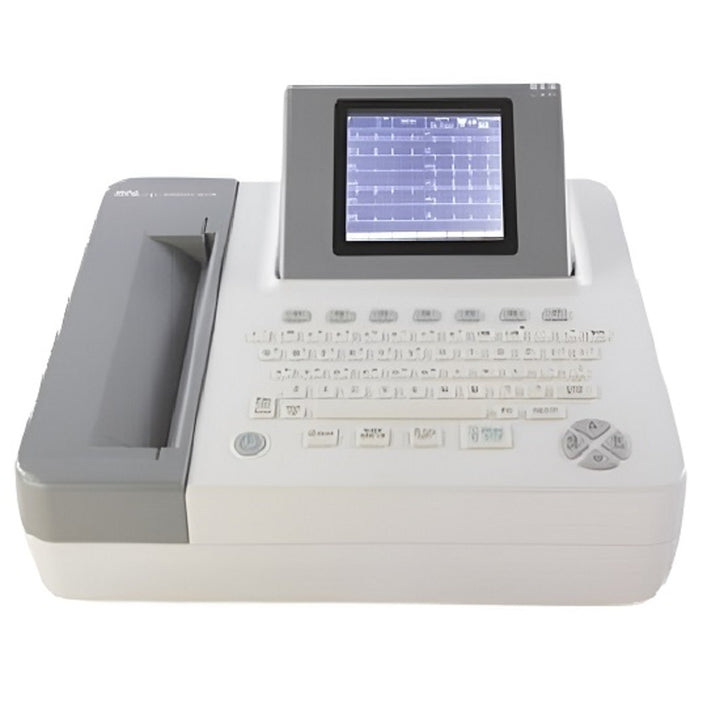

     The BPL Cardiart 9108 is a 12‑channel ECG recorder designed for comprehensive cardiac diagnostics. Its high‑resolution foldable display, intuitive QWERTY keyboard, and advanced interpretation algorithms simplify cardiac monitoring for clinicians. Whether you’re running a busy OPD, ICU, or diagnostic center, this ECG delivers dependable results every time.

     KEY FEATURES

•  Simultaneous 12 channel ECG recording with 12 lead simultaneous acquisition
• 5.7-inch high-resolution foldable display enables the easy viewing of patient demographics and real-time ECG data option
• The user-friendly design of the machine ensures easy operation ensures the freedom of easy use
• Built-in ECG parameters measurement and interpretation
• Supports external archiving devices such as USB drive, flash disk, SD card for virtually unlimited ECG data storage
• Pacemaker detection ensures recognition of pacing signal artifacts
• Different print modes include pre-sample, real-time sample, period sample, and arrhythmia triggered sample
• Has an Internal Memory, which can store up to 100 ECG recordings
• High-performance Li-ion rechargeable battery enables mains independent operations and provides battery use after charging
• Optional Data transmission to PC

TECHNICAL SPECIFICATIONS

Content in the box

• BPL Cardiart 9108 ECG Machine

• Patient Cable (1 no.)

• Chest Electrodes (6 nos.)

• Limb Electrodes (4 nos.)

• Power Cord (1 no.)

• Cardi‑Jelly Bottle (1 no.)

• ECG Paper Roll (1 no.)

• User Manual (1 no.)

Warranty : 1 Year

Country Of Origin – India

  USAGE INSTRUCTION

1. Connect the patient cable, chest, and limb electrodes.

2. Power on the machine or run on battery mode.

3. Enter patient details using the QWERTY keyboard.

4. Select manual or auto recording mode.

5. Review the trace on screen and print using the selected layout.

6. Save or export data to USB for record keeping or network transfer.
