BPL ECG Machine Cardiart Veterinary 6208 View

Rs. 62,000.00
People are viewing this right now
Vendor: BPL
SKU: TTVD04
Availability: In Stock Pre order Out of stock
Categories: Veterinary Medical Devices
sold in last hours
Add to WishlistCompare

HURRY! ONLY LEFT IN STOCK.

Ask a Question
Icon 1
FAST SHIPPING
Delivery in 3-5 business days
Icon 2
COD
Available all over India
Icon 3
EMI
EMI options are available
Icon 4
RETURN POLICY
5 days return policy
Icon 5
FREE SHIPPING
Over purchase of Rs.5000
Icon 6
PRODUCTS
100% authentic products
  • Description
  • Reviews ⭐
Description

PRODUCT DESCRIPTION

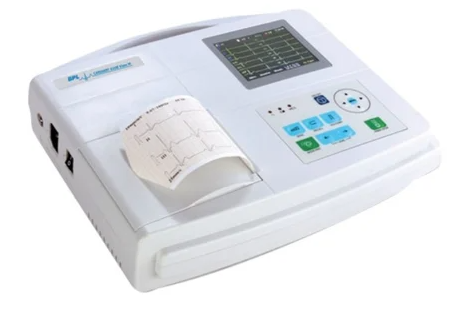

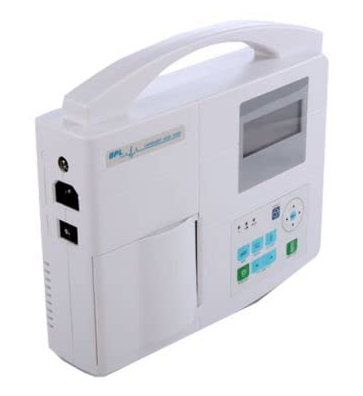

The BPL Cardiart 6208 View is a simultaneous 3-channel ECG reading device with auto-summary. It has a built-in rechargeable battery and allows the simultaneous acquisition of 12 wires. It is equipped with a large LCD screen and has USB connectivity.

FEATURES

  • Simultaneous 3 channel ECG recording with 12 lead simultaneous acquisition and Arrhythmia Detection in auto mode
  • Large Colour LCD Display enabling the preview of ECG and preview of patient information entry
  • Internal memory which allows storage of up to 200 ECGs
  • The compact, lightweight (only 2.5 kg) ensures device portability
  • Designed for safe use, both on a power line as well as battery
  • High-performance Li-ion rechargeable battery enables mains independent operations and provides battery use after charging
  • Removes interference from a power line, muscle tremor, etc. with automatic baseline correction
  • Enables the storage and transfer of ECG recordings from an ECG machine to PC
  • Facilitates transfer of ECGs from the device to USB in PDF format
  • Data transfer to PC through Ethernet port, pacemaker detection (Optional)

SPECIFICATIONS

Input circuit Floating Input circuit protection from defibrillation and pace maker
Lead  Standard 12 lead
Acquisition Mode  12 leads simultaneously
A / D Converter  12 bits
Measurement range  ±5mV PP
Time Constant  ≥3.2 seconds
Frequency Response  0.05Hz – 150 Hz
Calibration voltage 1 mV ± 3%
Sensitivity  2.5. 5, 10, 20 (mm / mv)
Input impedance  ≥50MΩ
Input Circuit Current  ≤50nA
Anti Baseline Drift  Automatic
Filter
  • EMG Filter 25Hz / 35Hz / 45Hz/OFF
  • DFT Filter 0.05 Hz
  • Low pass filter 150Hz / 100 Hz / 75 Hz
  • AC filter 50 /60 Hz
CMRR  >110db
Recording Mode
  • Auto : 3CH, 3/2CH, 3CH+1R,1CH, 1CH+1R
  • Manual : 3CH, 3/CH, 1CH
  • Rhythm: Signal rhythm lead
Power Supply AC
  • 100V-115V / 220V-240V,50/0 Hz
  • Built-in-rechargeable Li-ion battery: Voltage 14.4V
  • More than 3 hrs continuous operation under fully Charged new battery
Dimensions  300mm x 260mm x 75mm
Display  192 x 64 pixels LCD (Narrow Screen)
External Input / Output
  • Input : ≥100kΩ; sensitivity 10 mm / V ±5%
  • Output: ≤100 Ω; Sensitivity 1V/ mV ±5%
Communication Interface  Ethernet, Rs. 232, USB (optional)



CONTENT OF BOX

  • Power Cord

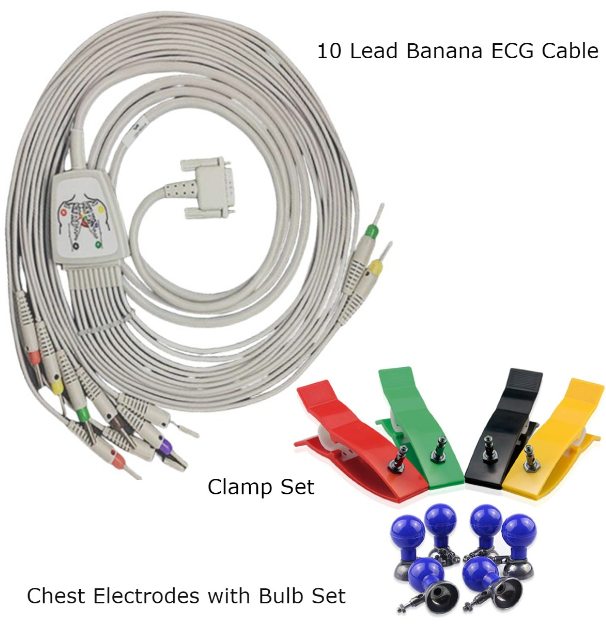

  • Patient cable
  • Chest electrodes
  • Limb Electrodes
  • Thermal recording paper

Warranty: 1 Year
