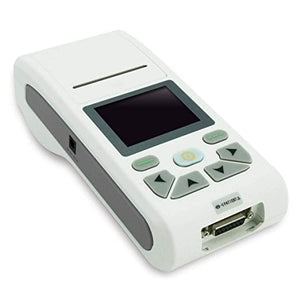

Contec Handheld ECG 90A

PRODUCT DESCRIPTION

ECG90A is an Electrocardiograph which can collect 12-lead ECG signal simultaneously and print waveform by the thermal printing system.

It is a 3-channel portable ECG machine

It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for Lead off and Lack of paper, multi-language interface, case database management

FEATURES

• Recording and displaying ECG waveform in AUTO/Manual mode
• Measuring and diagnosing ECG waveform parameters automatically
• Prompting for "lead Off" or "Lack of paper"
• This is a test performed commonly during regular health check-ups or heart check-ups. It may be recommended more often in people having cardiac disorders
• It is a non-invasive procedure and an ECG report generated through this process gives a lot of information of the heart to the doctor/technician trained on interpreting ECG reports.
• ECG machine can provide information on the heart rate and heart rhythm, the size of the chambers of the heart, any damage to the muscle in the walls of the heart, side effects of medication on the heart, find the cause of chest pain, monitor implanted mechanical devices such as pacemakers and abnormalities caused by other health conditions in the form of waveforms
• The heart's impulses generate the readings called an electrocardiograph. An ECG report is printed on special paper known as ECG paper. An ECG report is usually sought in cases like suspected myocardial infarction, cardiac murmur, cardiac arrhythmia, seizures, preoperative monitoring, etc.
• Optional interface languages (Chinese/English )
• Case database management

TECHNICAL SPECIFICATIONS

• Dimension:-207mm (L) ×96mm (W) ×62mm (H)
• Weight:-0.5Kg
• Power supply:-DC 12V adapter, 7.4V/2000mAh rechargeable lithium battery
• AC filter:-50Hz/60Hz (-20dB)
• EMG interference filter:-25Hz/35Hz (-3dB)
• Polarizing voltage:-±500mV
• Sampling frequency:-1000Hz
• Measurement parameters:- P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
• Safety classification:-class I, type CF and defibrillation-proof applied part
• Sampling accuracy:-12-bit
• Input impedance:-≥50MΩ
• Input circuit current:-≤50mA
• Noise level:-≤15µVp-p
• Sensitivity:- 5, 10, 20 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
• Calibration voltage:-1mV
• Patient leak current:-<10µA
• CMRR:->60dB, >100dB (add filter)
• Frequency response:-0.05Hz ~ 150Hz (-3dB~+0.4dB)

  Warranty : 1 Year
