Product Description

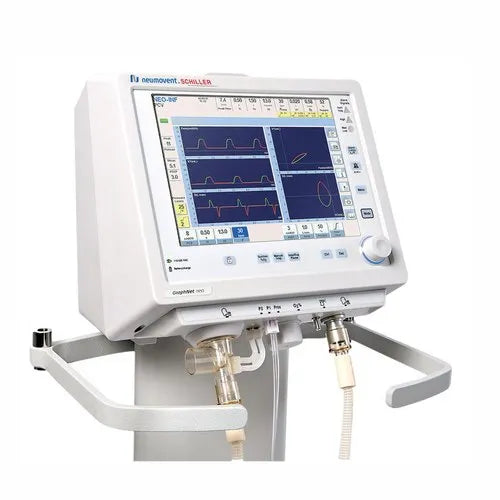

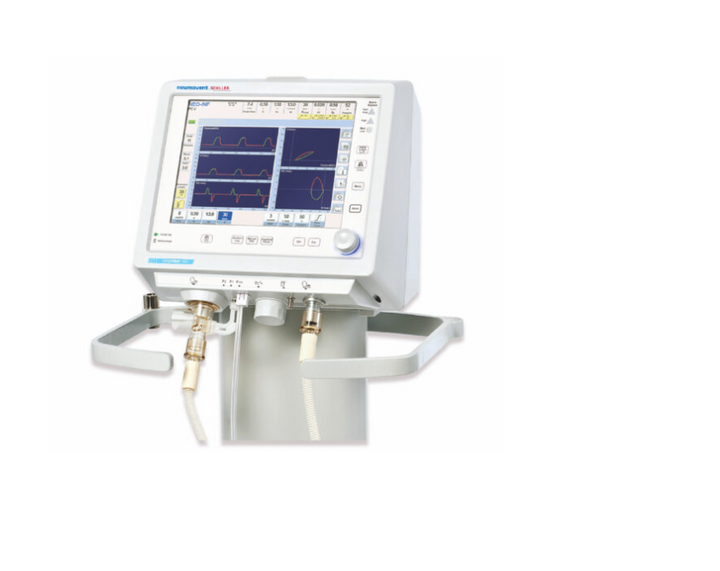

Dedicated Neonatal & Infant Ventilator


  • 12.1" TFT- LED color touch screen display to view waveforms & loops simultaneously
  • Proximal Flow Sensor at Y-piece for precise flow/volume monitoring and quick trigger response
  • Independent of circuit and humidifier compliance
  • Down to 2 ml at VC ventilation
  • Dedicated neonatal ventilation modes like TCPL, SIMV (TCPL)+PSV, N-CPAP, Non-Invasive Ventilation
  • SIMV(PRVC)+PSV, VSV- Volume support ventilation
  • Pressure control and volume guaranteed with PRVC
  • Automatic leakage compensation
  • Continuously automatically optimized trigger sensitivity (from 0.2 ml) & termination criteria
  • Selectable apnea back up ventilation (Volume or Pressure type)
  • Altitude and circuit compliance compensation & leak compensation in all modes
  • Advance Lung Mechanism calculations: Auto-PEEP and trapped Volume, Exp. Time Constant, Compliance and Resistance
  • C20/C, RVR Monitoring
  • High Flow Oxygen Therapy (HFOT/ HFNC) (OPTIONAL)

Optional Accessories

  • Air Compressor
  • Humidifier
  • Micropump Nebulizer
  • Aeroneb Probe from Aeroneb

Warranty: 1 Year
