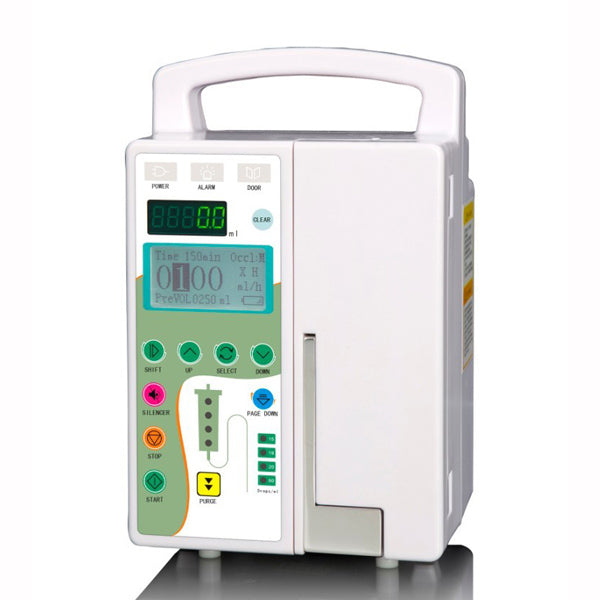

Beyond Infusion Pump BYS-820  With HD LCD Display

Beyond Infusion Pump BYS-820 With HD LCD Display



  • Rs. 22,800.00
  • Save Rs. 15,200
Tax included.

Only 100 left!
  • Tentabs

    All of our orders are shipped from our warehouse in Bangalore,to the shipping address provided by the customer via our courier partners .

    Products will be delivered in 3-5 business days from the day of dispatch.

    You will get shipping and delivery updates by text or email.

    Occasional delays may occur due to bad weather,festivals and holidays

    Delivery in 3-5 business days

  • Tentabs
  • COD

    Cash On Delivery is available all over India excluding some postal codes.

    COD eligibility can be checked during checkout process.

    Available all over India

  • Tentabs
  • EMI

    EMI options are available

  • Tentabs


    Our policy lasts 5 days. If 5 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

    To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

    Refunds (if applicable)

    Once your return is received and inspected, we will send you an email to notify you that we have received your returned item.

    We will also notify you of the approval or rejection of your refund.

    If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

    5 days return policy

  • Tentabs

    Over purchase of Rs.5000

  • Tentabs

    100% authentic products



Beyond Infusion Pump BYS-820 has disposable infusion sets used with this product shall comply with the standards of GB 8368-2005 Infusion Sets for Single Use, Gravity Feed. The infusion sets which do not comply with the standards may lead to the incorrect infusion rate, incontrollable transfusion, tube breakage, etc.

  • HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
  • Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting, etc., which gain patents;
  • Compatible with any brands of infusion sets after correct calibration;
  • Preset solution volume to greatly reduce the workload of nurses;
  • Work mode: ml/h and drop/min can switch freely;
  • Three levels of occlusion: high, middle and low;
  •  Purge function;
  • KVO (keep-vein-open) automatically opens as infusion is completed, KVO rate is 3ml/h;
  • Power Source: AC100---240V, 50/60Hz; Internal Battery;
  • Automatically record the settings of last infusion;
  • BYS-820D can store 2000pcs of infusion records and it has a drug library.
  • OEM is available.

This instrument is applied in internal medicine, surgical, pediatrics, obstetrics and gynecology, ICU, CCU, operation room and other clinical infusion treatment (but not suitable for blood transfusion). It is especially suitable for clinical treatment that needs long-time accurate control of infusion rate and supervision of infusion processes.

Model: BYS-820 & BYS-820D
Infusion Rate : 1ml/h---1200ml/h (1ml/h step)
Purge Rate : 100ml/h---1200ml/h (can be calibrated)
Rate Accuracy : within±5% (after correct calibration)
Volume Limit : 0ml---9999ml
Total Infusion Volume : 0---9999.9ml

Alarm Pressure
  • High 800mmHg±200mmHg (106.7kPa±26.7kPa)
  • Medium 500mmHg±100mmHg (66.7kPa±13.3kPa)
  • Low 300mmHg±100mmHg (40.7kPa±13.3kPa)

Audible and Visible Alarm
  • End of injection
  • Occlusion
  • Door open
  • Bubbles in the tube
  • Wrong setting
  • Low battery
  • AC power pulled out
Power Source
  • 100---240Vac, 50/60Hz
  • Internal rechargeable Li-battery volume≥1,600mAh
  • 4 hours of internal battery backup
Bubble Detector
  • Ultrasonic wave detector
  • Detection sensitivity ≥25μL
KVO Speed : 1ml/h---5ml/h (1ml/h step)

Power Consumption : 30VA

Operation Environment
  • Temperature 5--- 40 degree
  • Relative Humidity 20---90%
Storage Environment
  • Temperature -30----- 55 degree
  • Humidity ≤95%
  • Atmospheric Pressure 50.10KPa---106.0KPa
Infusion Set : Compatible with any brands
Forbidden : Not support blood Infusion
Dimension : 140mm(L) x 157mm(W) x 220mm(H)
Net Weight : 1.8kg



  •  Infusion Pump
  • Operating Manual
  • Power Cord

Warranty: 1 year
