BMC BiPAP Machine RESmart GII Y30T
Product Description
The BMC RESmart GII Y30T BiPAP Machine is an advanced non-invasive ventilator designed to offer superior respiratory support for patients with Obstructive Sleep Apnea (OSA), COPD, respiratory insufficiency, chronic hypoventilation, and other breathing disorders. Its intelligent pressure adjustment and adaptive algorithms help ensure comfortable, synchronized ventilation for use in hospitals, clinics, sleep labs, and home care settings

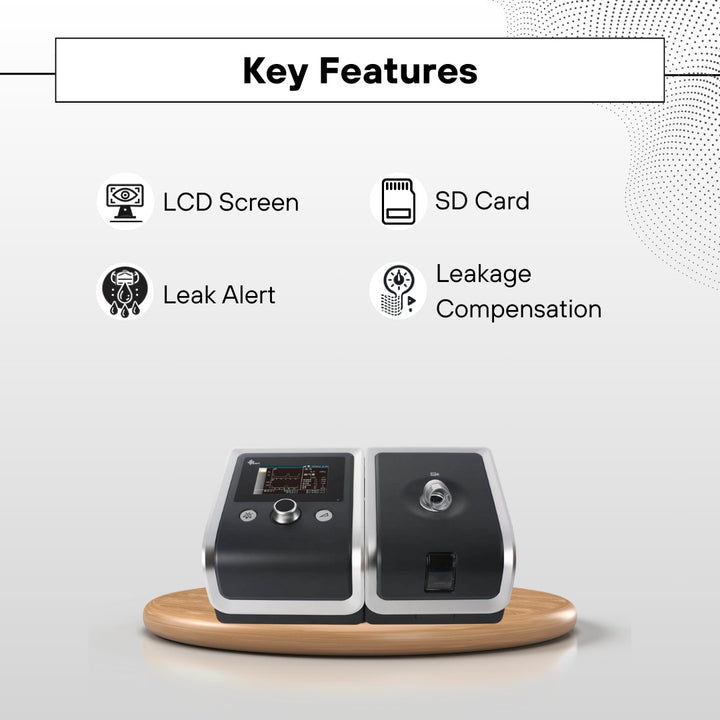

Key Features
-
Multiple Clinical Modes: Supports CPAP, S, S/T, T, AutoS, and AutoCPAP modes for customized therapy.
-
Adaptive Auto-Pressure Adjustment: Automatically adjusts pressure in response to the patient’s breathing pattern.
-
Wide Pressure Range: IPAP: 4–30 hPa; EPAP: 4–25 hPa for effective respiratory support.
-
Quiet Operation: Runs at <30 dB, ideal for silent ward and nighttime use.
-
Adjustable Ramp Time: Ramp time adjusts from 0–60 minutes for gradual comfort at therapy start.
-
Leakage Compensation: Advanced technology maintains stable pressure delivery despite mask leaks.
-
Data Recording: Built-in SD card storage for patient data, pressure records, and system logs.
-
Real-Time Monitoring: Displays pressure, flow, tidal volume (Vte), respiratory rate (RR), minute ventilation (MV), and optionally SpO₂* and pulse rate* (with accessories).
-
Humidifier Included: Integrated heated humidifier reduces mucosal dryness and improves comfort during long-term use
Technical Specifications
| Specification | Details |
|---|---|
| Modes of Operation | CPAP / S / S-T / T / AutoS / AutoCPAP |
| Pressure Range | IPAP: 4–30 hPa; EPAP: 4–25 hPa |
| Ramp Time | 0–60 minutes |
| Noise Level | <30 dB |
| Display | LCD screen showing real-time ventilation parameters |
| Data Storage | SD Card support |
| Humidity | Integrated Heated Humidifier |
| Weight & Dimensions | Device: ~1.5 kg; With humidifier: ~2.5 kg; Dimensions vary by configuration |
| Power Supply | AC 100–240 V, 50/60 Hz |
Contents in the Box
-
BMC RESmart GII Y30T BiPAP Main Unit
-
Heated Humidifier
-
Standard Patient Tubing (22 mm)
-
Power Adapter & Cable
-
Carry Bag
-
User Manual
-
SD Card for Data Logging
-
Optional Accessories: SpO₂ kit / Wi-Fi-GPRS module (if selected)
Warranty
-
Manufacturer Warranty: 2 Years
Country of Origin - China
Usage Instructions
-
Connect the power cord and breathing tube securely.
-
Attach the mask ensuring a proper seal.
-
Insert the SD card for data storage.
-
Select the desired therapeutic mode (e.g., S/T or AutoCPAP).
-
Adjust ramp time and pressure settings as prescribed.
-
Monitor readings directly on the LCD screen for therapy assessment
*****
FAQS
Is this a CPAP or BiPAP machine?
BMC Y30T machine is a BiPAP machine.
What all different operating modes are available?
BMC BiPAP machine supports CPAP, S, S / T, T operating modes.
Do you provide a humidifier with the BMC BiPAP as well?
Yes, the humidifier is provided with the BMC BIPAP
What is the model name of the BMC BiPAP machine?
The model name is GII Resmart Y30T BMC BiPAP machine.
Does the BMC BiPAP machine require an oxygen cylinder?
No, it doesn’t require an oxygen cylinder. If prescribed by the doctor, you can use BMC BiPAP machine and oxygen cylinder simultaneously.
What will be the mask size?

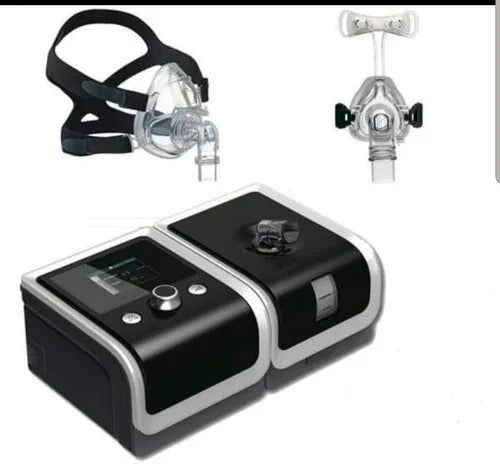

You will get the option of three different types of masks, full face, nasal and nasal Pillow. In full-face and nasal masks, there are sizes from small, medium, and large. In nasal pillow mask all different size of pillows is available inside the pack.
Can BMC BiPAP be connected to an oxygen concentrator?
You can use both the machine at the same time, as there is a port in the mask through which you can insert a nasal canula for oxygen supply also you use an OXYGEN ENRICHMENT ADAPTER FOR CPAP AND BIPAP MACHINES in between hose pipe and mask to connect the nasal canula.
