BPL DYNATRAC Neo TMT (without PC & Printer)

SKU ID: TTHE205D

Brand:BPL

  • Rs. 235,360.00
  • Save Rs. 45,536
Tax included.

Only 5 left!
Safe checkout powered by CCAvenue - Visa, Mastercard, Maestro, JCB, American Express
  • Tentabs
  • FAST SHIPPING

    All of our orders are shipped from our warehouse in Bangalore,to the shipping address provided by the customer via our courier partners .

    Products will be delivered in 3-5 business days from the day of dispatch.

    You will get shipping and delivery updates by text or email.

    Occasional delays may occur due to bad weather,festivals and holidays

    Delivery in 3-5 business days

  • Tentabs
  • COD

    Cash On Delivery is available all over India excluding some postal codes.

    COD eligibility can be checked during checkout process.

    Available all over India

  • Tentabs
  • EMI

    EMI options are available

  • Tentabs
  • RETURN POLICY

    Return

    Our policy lasts 5 days. If 5 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

    To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

    Refunds (if applicable)

    Once your return is received and inspected, we will send you an email to notify you that we have received your returned item.

    We will also notify you of the approval or rejection of your refund.

    If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

    5 days return policy

  • Tentabs
  • FREE SHIPPING

    Over purchase of Rs.5000

  • Tentabs
  • PRODUCTS

    100% authentic products

Tentabs-Trusted

PRODUCT DESCRIPTION

Advanced Dynatrac Neo Software enables accurate recording and analysis of the test. This software in combination with the optional HES Algorithm enables Arrhythmia analysis and motion artifact reduction in Stress ECG.

The acquisition unit is available in two options: Dynatrac Neo BT - Bluetooth enabled wireless ECG transmitter & Dynatrac Neo - A USB-based ECG acquisition unit that acquires and transfers ECG data to PC through a wired interface.

FEATURES

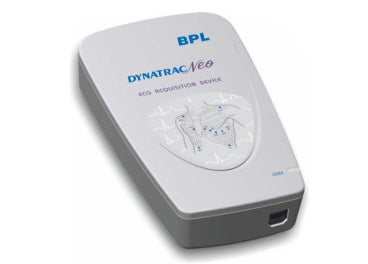

  • DYNATRAC Neo: USB-based ECG acquisition unit that acquires and transfers ECG data to PC through a wired interface.

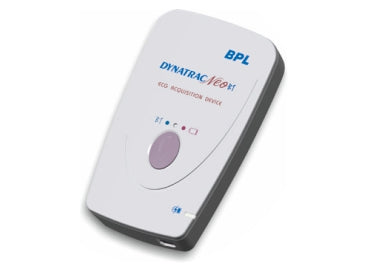

  • DYNATRAC Neo BT: Bluetooth enabled wireless ECG transmitter device that helps portability.

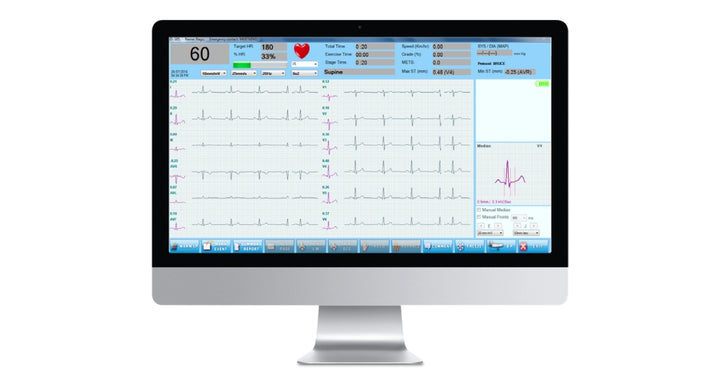

  • Advanced Windows-based stress test software enables accurate recording and motion artifacts reduction in stress ECG.
  • Treadmill protocols can either be preset or can be programmed by the user.
  • OPTIONAL: HES® HANNOVER ECG system for analysis and interpretation.

 PRODUCT SPECIFICATIONS

Data Acquisition

Sampling Rate 1000 Samples/sec
Acquisition Simultaneous 12 lead acquisition, 12 bits
Leads Standard 12 leads; Acquired 8 leads; Reconstructed 4 leads (III, aVR, aVL, aVF)
Input Impedance >100 M ohms
Time Constant  3.2 Seconds
DF Protection Internal
CMRR 90dB @ 50 Hz
Frequency Response 0.5Hz to 100Hz
ECG Analysis 200 Samples/sec
QRS Detection Single lead (selectable, automatic switching to lead II, if lead II is good and selected lead is noisy); default V5
Calculated Parameters ST-Level, ST –Slope, HR, METS
Enlarged Median Lead Auto Lead selection (Lead having minimum ST level) or Manual lead selection
ECG Display Format 3 lead or 6 lead or 12 lead median
Resolution 1024 x 768 pixels (minimum)
ECG Display Speed 25mm/sec or 50mm/sec
ECG Display Sensitivity  5 or 10 or 20mm/mV (selectable)
Filter 20Hz or 40Hz or No filter
Trend Graphs Trend graphs of HR, ST-Level, ST-slope, BP, and J-amplitude
Local Storage On hard disk, separate folder for each test
External Storage Selected records can be exported to CDROMs
Power Output 5V DC, 2.5WBattery Capacity
Battery Capacity Approx. 10 tests (each 30 min duration) only for blue-tooth device
Operating Temperature 10 to 400C

Warranty : 2 Years
