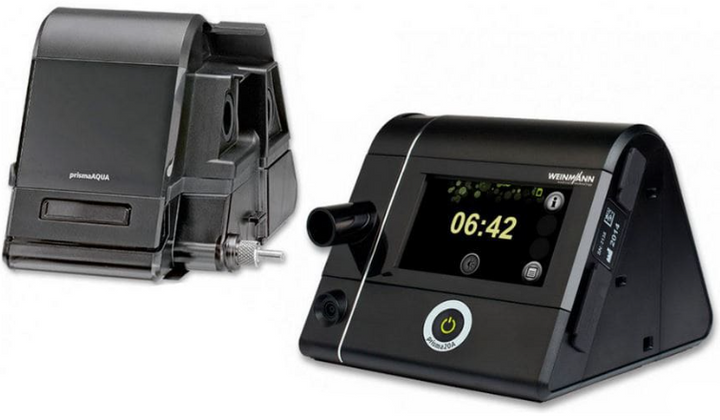

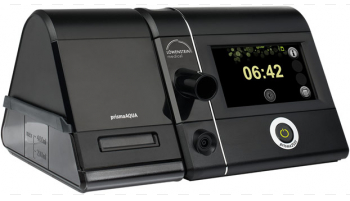

Lowenstein BiPAP Prisma ST 25
Product Description
BiLevel therapy device for the treatment of patients with obstructive, mixed, or complex sleep apnea and a high and/or fluctuating pressure requirement, poor CPAP compliance, central apneas, sleep-related or position-dependent hypoventilation (e.g., OHS), respiratory insufficiency, coprevalent respiratory insufficiency (e.g., COPD/ overlap). The device has different pressure levels during inspiration and expiration and a backup frequency for the treatment of central events.
| Pressure Range (cm H2O) | 4 to 25 |
| Ramp Rate | 30 |
| Brand | Prisma 25ST |
| Usage | Hospital, Clinic, Personal |
| Modes | S/T |
Display
The information shown on the display depends on the current status of the therapy device:
• Standby mode (no therapy in progress) The therapy device operating hours since therapy began are shown for the first 30 seconds. Then the device switches to the start screen automatically. The start screen shows the clock and the wake-up time if the alarm clock is set. Settings can be performed on the therapy device
• Therapy mode (therapy in progress) : You can perform the mask test and start the softSTART sleep aid
• Energy-saving mode The therapy device is supplied with a very low level of power; nothing is shown on the display. You can return to Standby mode by pressing the On/Off button
Technical Specification
| Display |
Allows operation of the therapy device and the respiratory air humidifier. Displays settings and current values |
| SD card | Records therapy data |
| Filter compartment in the suction area | Houses the air filter and, where applicable, the pollen filter. The respiratory air is sucked in here and the dust particles are filtered out. |
| Power input | Connects the therapy device to the power supply unit. |
| Humidifier | Indicates that the respiratory air humidifier is connected and switched on. Shows the set humidifier level of the respiratory air humidifier. |
| CPAP operating pressure range | 4 cmH2O to 20 cmH2O |
| AcSV pressure range | 4 cmH2O to 30 cmH2O |
| BiLevel pressure range | 4 cmH2O to 30 cmH2O |
| Pressure accuracy |
< 20 cmH2O: ± 0.6 cmH2O ≥ 20 cmH2O: ± 0.8 cmH2O |
| P Limmax (maximum pressure in case of error) | < 40 cmH2O |
|
- Inspiratory positive airway pressure (IPAP) - Expiratory positive airway pressure (EPAP) - Relative inspiration duration Ti/Tset - Trigger - Pressure rise rate - Backup frequency - Available modes |
4 cmH2O to 25 cmH2O 4 cmH2O to 25 cmH2O
20% to 67% Auto, can be set to 3 levels Can be set to 3 levels Auto, 0 bpm to 35 bpm CPAP, APAP, S, autoS, autoS/T, S/T, T,aPCV |
| Alarm output | Optical and acoustic |
| System interface | 12 V DC Max. 10 VA |
| Electrical output | Max. 40 VA |
| Air pressure range | 700 cmH2O to 1060 cmH2O |
| Temperature range - Operation Transport and storage |
+5°C to +40°C |
| Weight | 1.4 kg |
| Dimensions (in cm) | 17 x 13.5 x 18 |
Warranty: 2 years
CONTENT OF BOX
- Prisma 25ST BIPAP Device
- Hose Pipe
- Filter
- Power Adapter & Cable
- Carry Bag
- User Manuals
