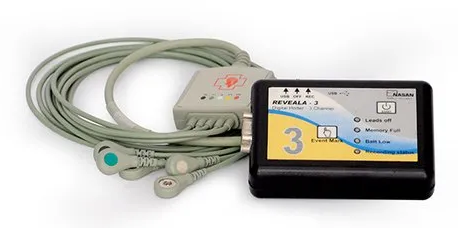

Nasan Holter 3 Channel Reveala 3
PRODUCT DESCRIPTION
The Reveala 3 is engineered to meet the highest clinical standards — offering superior signal quality, intelligent analysis software, and easy operation for both medical staff and technicians. Its compact and lightweight design ensures patient comfort during long‑term monitoring, while the advanced data analysis tools support faster and more confident clinical decisions.
KEY FEATURES
- Store three channels ECG data of 24 hours.
- 10, 20, 30 and 60 minutes disclosure.
- Selection of normal beat automatically or manually.
- Reversing selected channel polarity.
- View the ECG data of all channels of all beats in selected template.
- Facility to edit arrhythmia type of individual beat.
- View trends of HR, detected arrhythmias, ST level of all channels.
- Facility to view maximum HR and minimum HR, longest Pause, longest V-Tach,
- longest SV Tach, longest ST episode, maximum delta ST.
- 8 sec, 1 min, 10 min, 20 min, 30 min and 60 min disclosure prints.
- The 3 channel solid state Digital Holter system records and enables the classification, analysis, review and reports of electro-cardiogram, arrhythmic disorders.
- View the ECG data of all channels of all beats in selected template.
- Facility to edit arrhythmia type of individual beat.
- View trends of HR, detected arrhythmias, ST level of all channels.
- Facility to view maximum HR and minimum HR, longest Pause, longest V-Tach,
- longest SV Tach, longest ST episode, maximum delta ST.
- 8 sec, 1 min, 10 min, 20 min, 30 min and 60 min disclosure prints.
- Reanalyze test.
- Dimensions : L 108 X B 69 X H 41 mm
- Weight : 200 gms
TECHNICAL SPECIFICATION
| Product Name | Nasan Reveala 3 Holter Monitor |
| Brand | Nasan Medical Electronics Pvt Ltd |
| Model | Reveala 3 (3‑Channel Digital Holter) |
| Number of ECG Channels | 3 Channels |
| ECG Acquisition Quality (ADC Converter) | 12‑bit ADC |
| ECG Channel Print | 3 Channel |
| Recording Duration | Typically up to 24 Hours |
| Recording Time | 24 Hours |
| Dimensions | Approx. 10.8 × 6.9 × 4.1 cm |
| Weight | Approx. 200 g |
Content in the box
-
The Holter monitor unit (3‑channel).
-
Patient cables and electrode lead set (appropriate for 3‑lead Holter).
-
SD card (for data storage) or built‑in storage mechanism as configured.
-
USB interface cable (for data transfer).
-
Quick start guide and user manual.
-
Warranty card/documentation from the manufacturer.
-
Holter analysis software license (depending on configuration/hospital purchase agreement).
-
Training documentation or setup guide (depending on vendor support).
Warranty : 1 Year
Country Of Origin -India
USAGE INSTRUCTION
-
Attach electrodes according to the hospital’s standard 3‑lead Holter configuration and secure the device to the patient in a comfortable, ambulatory‑friendly manner.
-
Verify lead placement and signal quality (the device supports channel polarity reversal if needed).
-
Start recording and provide patient instructions (what movements to avoid, when to mark events).
-
After the monitoring period (typically 24 h), retrieve the SD card or connect via USB to the Holter analysis software.
-
Use the software to review ECG data: view HR trends, arrhythmia logs, ST‑segment changes, and produce printable disclosures as needed.
-
Interpret and integrate the report into the patient’s record and follow up accordingly.
