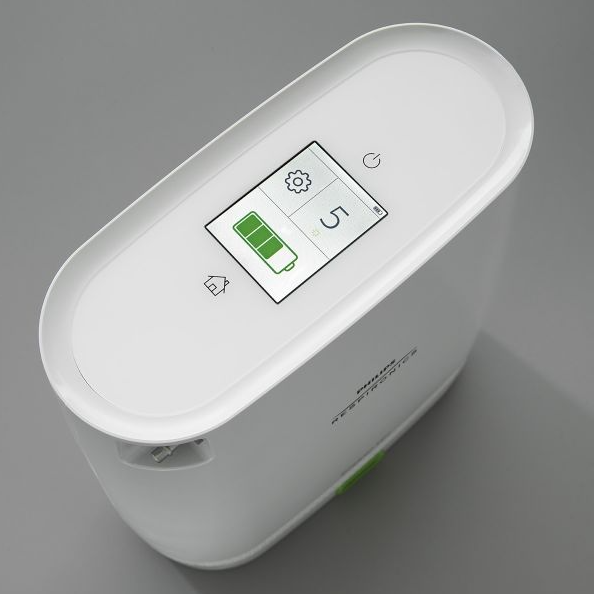

Philips Simply Go Mini Portable Oxygen Concentrator






PRODUCT DESCRIPTION
FEATURES
- Easy To Use & Read Touch Screen Control Panel
- 5 Pulse Flow Settings
- Lightweight and Simply To Carry
- Simple To Remove or Replace Rechargeable Battery
SPECIFICATIONS
- Oxygen concentration: At least 87% at all settings (maximum of 96%).
- Outlet pressure: 20 PSIG
- Dimensions: 9.4 x 8.3 x 3.6 Inches with Standard Battery; 10.2 x 8.3 x 2.6 Inches with Extended Battery
- Weight: 5 lbs Standard Battery; 6 lbs Extended Battery
- Control Panel: Color Touch Screen LCD
- Pulse Setting: 1-5
- Power: Universal 100-240 VAC, 50/60 Hz, 2.0 A
- Oxygen Concentration: 87 to 96% at All Settings
- Sound Level: 43 dBA Typical at Setting 2
- Operating Altitude: Up to 10,000 Feet
Flow settings
Pulse-mode bolus size
- 1 = 12 ml
- 2 = 24 ml
- 3 = 36 ml
- 4 = 48 ml
- 5 = 60 ml
- 6 = 72 ml
Night mode Variable pulse volumes based on breath rate, to maintain a constant minute volume per setting:
- 1 = 250 ml/min
- 2 = 500 ml/min
- 3 = 750 ml/min
- 4 = 1000 ml/min
- 5 = 1250 ml/min
- 6 = 1500 ml/min
Sound level 43dB (nominal) at pulse setting 2
Operating conditions
- Operating temperature 41° F to 95° F (5° C to 35° C)
- Relative humidity 15% to 93%
- Altitude Up to 10,000 ft. (3,048 m)
AC power
- Input 100 to 240 VAC, 50/60 Hz
- Output 19 VDC, 6.3 A max
- Power consumption 120 W while charging
DC
- Power Input 12 – 16 VDC
- Output 19 +/- 5% VDC, 6.3 A
Audible alarm
- Sound level: 56 dBA or greater when measured at 1 m
- Alarm type: No breath, low oxygen concentration, high breath rate, technical fault, low battery, no flow, depleted battery, external power failure
Battery Chemistry
- Lithium ion 14.4 VDC (nominal)
- Battery options Standard battery, Extended battery (equals two standard batteries)
- Dimensions Standard battery: 7.9 in. x 3.6 in. x 1.0 in. (20.1 cm x 9.1 cm x 2.5 cm)
- Extended battery: 7.9 in. x 3.6 in. x 1.9 in. (20.1 cm x 9.1 cm x 4.8 cm)
Alarms
- Low oxygen purity (<83%)
- No breath
- High breath rate
- No flow
- Low battery
- Depleted battery
- System technical fault
Weight
- Standard battery: 1.1 lbs. (0.50 kg)
- Extended battery 2.1 lbs. (0.95 kg) Watt-hour rating 3.4 Ah x 3.6V x 8 cells = 97.9 Wh per standard battery
Charge time
- Standard battery: 4 hours maximum.
- Extended battery: 8 hours maximum
Typical battery duration on pulse setting 2, 20 BPM3
- Standard battery Up to 4.5 hours
- Extended battery Up to 9 hour
Philips Simply Go Mini Portable Oxygen Concentrator
Weight: 5 lbs. (2.3 kg) with standard battery installed 6 lbs. (2.7 kg) with extended battery installed
Settings: Five pulse dose settings
Travel: Meets FAA requirements for travel2
Portability: Can be used 24/7 at home or away
CONTENT OF BOX
- Shoulder Bag
- Accessory Bag
- Backpack
- Standard Battery
- Extended Battery
- External Battery Charger
- AC Power Supply
- DC Power Supply
Additional information
The Philips SimplyGo Mini is designed to help you grow your business by giving you the capacity to deliver the lightweight, attractive features and true reliability that today's patients demand in a POC.
As the smallest and lightest portable oxygen concentrator ever developed by Philips Respironics, SimplyGo Mini is designed for today's patients with features such as attractive and stylish design; easy to remove the external battery; light, intuitive and easy to read display; and a sturdy and comfortable carrying case.
Warranty: 3 Years
