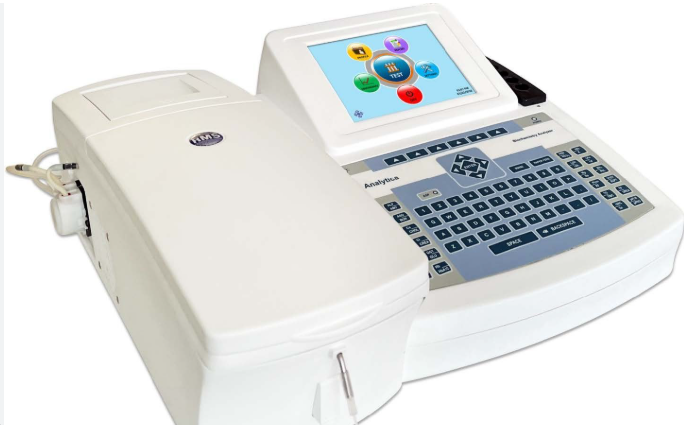

RMS Semi- Biochemistry Analyzer ANALYTICA 705
Product description
The RMS Analytica 705 is a semi-automatic biochemistry analyzer designed for clinical laboratories. It performs a wide range of biochemical tests on serum, plasma, whole blood, urine, and cerebrospinal fluid. This compact, user-friendly analyzer delivers accurate results and is ideal for small- to medium-sized laboratories seeking reliable, cost-effective testing.
Test Menu:
-
Routine Biochemistry Tests
-
Liver Function Tests (LFT)
-
Kidney Function Tests (KFT)
-
Lipid Profile
-
Electrolytes
-
Enzyme Activity Tests
-
Hormones and Drug Level Assays
KEY FEATURES
- Color Graphical Display with GUI
- 7 Filters and 3 optional positions
- 48 direct test keys on board
- Lamp saving indication on keyboard
- 100000 memory of tests results
- 248 tests can be programmed
- Facility to create test profiles
- 2 USB port, 1 RS port
- Search data by Patient ID, Test name, Date, Sample ID
- Real-time online graph and temperature on the screen
- Storage of Graph (Calibration, QC) for each test
- WiFi Connectivity (optional)
- LIS Software available (optional)
TECHNICAL SPECIFICATIONS
| Flow cell | 30ul quartz |
| Light source | Quartz halogen lamp 6v/10 W |
| Temperature | 25,30,37'C,Room temperature |
| Temperature control | By Peltier element |
| Photodetector | UV Enhanced silicon photodiode |
| Cuvette option | 10mm square |
| Filter | 340,405,505,546,578,620,670 With 3 optional |
| Filter selection | filter wheel: Through stepper motor |
| Reaction Volume | 350-1000ul |
| Aspiration | Peristatic pump |
| Photometric range | -0.1 to 3.0 absorbance |
| Resolution | 0.001 absorbance |
| Linearity | <1 % |
| Blanking | Automatic zero setting |
| Calibration | Automatic against the .standard with auto storage of graph for all test |
| QC | 3 control per test with levey Jenning |
| Display | 640x480pixel,color TFT (5.7") |
| Printer | thermal printer |
| Air purge | After each sample |
| Memory |
|
| Result recall |
Test name, Patient name, Sample ID, Date |
| LIS Software |
Available |
| Dimension |
420x310x150mm |
| Power supply |
110-250V,50+_10%Hz |
| Weight |
8 kgs approx |
CONTENT OF BOX
- RMS ANALYTICA 705 Biochemistry Analyzer
- Power cord
- Fuse - 2
- Thermal printer roll - 2
- User manual
Warranty 1 Year
Country of Origin: India
Usage Instructions
-
Power on the analyzer and select the desired test.
-
Load the prepared sample (serum, plasma, whole blood, CSF, or urine).
-
Choose the appropriate filter or wavelength for the test.
-
Run the analysis and observe the real-time graph and temperature.
-
View and store results; export via USB or connectivity ports.
-
Perform regular calibration and QC as required.
