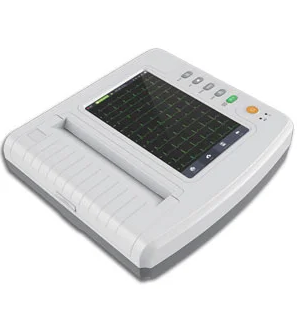

RMS ECG Machine 12 Channel Vesta 12C
People are viewing this right now
FAST SHIPPING
Delivery in 3-5 business days
COD
Available all over India
EMI
EMI options are available
RETURN POLICY
5 days return policy
FREE SHIPPING
Over purchase of Rs.5000
PRODUCTS
100% authentic products
Description
Product Description
| Number Of Channels | 12 Channels |
| Brand | RMS |
| Model Name/Number | Vesta 12C |
| Lead Switching | Automatic |
| Visual Alarm | Yes |
| CMRR | >80 dB |
| Dimension | 410mm x 316mm x 136mm |
| Time Constant | Less Than 5s5.2kg (with battery) |
| Emg Filter | 25Hz/35Hz/45Hz/OFF |
| A/D Resolution | 24 bit |
| Lead selection | Standard 12 leads |
| Notch filter | 50/60 Hz |
| Noise level | ≤12 μVp-p |
| Acquisition | Auto / Manual |
| Memory | 1000 Patients |
| Input impedance | ≥ 5 M Ohm, ≥ 50 M Ohm (10Hz) |
| Frequency Response | 0.05 to 150 Hz |
| CMRR | >110 dB |
| Time Constant | ≥ 3.2 sec |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV |
| Measurement | HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5) amplitude, S(V1) amplitude, R(V5)+S(V1) amplitude |
| Recorder | Thermal Printer |
| Paper Speed | 5, 6.25, 10, 12.5, 25 and 50 mm / sec |
| Recording paper |
Thermosensitive 210 mm × 20 m (Rolled) |
| Print-out Format | Auto and Manual mode |
- Compact, light weight and portable with carry handle
- In-built thermal printer with auto and manual mode
- Digital filters to eliminate baseline drift, AC and EMG interface
- Isolation protection against defibrillation
- Virtual pop-up keyboard for data input
- Supports USB keyboard, mouse and pen drive
CONTENT OF BOX
- ECG Machine
- Limb Electrodes
- Chest Electrodes
- Patient Cable
- Electrolyte Gel
- Printing Paper
- Power Adapter
Warranty: 1 Year
Country Of Origin - China
