RMS ECG Machine 12 Channel Vesta 12EC
PRODUCT DESCRIPTION

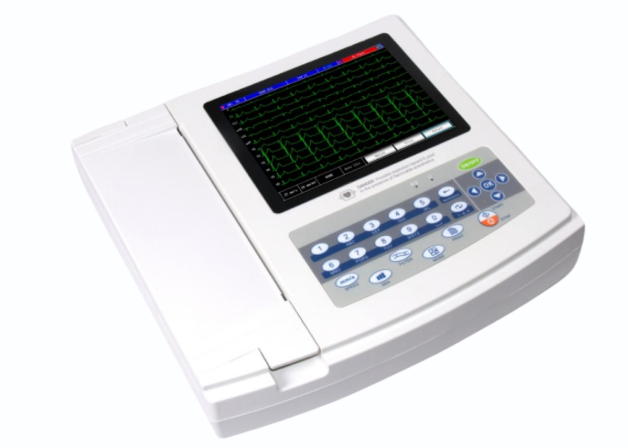

The RMS Vesta 12EC is a high‑performance 12‑channel ECG machine ideal for hospitals, clinics, and diagnostic centers. Equipped with an 8‑inch high‑resolution color TFT touch screen, it provides clear on‑screen ECG waveforms and interpretation. Its compact and lightweight design, along with a convenient carry handle, makes it easily portable between patient rooms or departments. With robust digital filtering and defibrillation protection, the Vesta 12EC ensures safe, precise, and reliable cardiac monitoring.
KEY FEATURES
- High resolution 8-inch color TFT with touch screen
- Suitable for clinics, hospitals and outdoor camps
- On-screen display of 12 channel ECG with interpretation
- Compact, lightweight and portable with carrying handle
- Lead-off and printer paper out indication
- LED indicators for charging and AC/DC operation
- In-built thermal printer with auto and manual mode
- Digital filters to eliminate baseline drift, AC and EMG interface
- Isolation protection against defibrillation
- Soft-touch alphanumeric and on-screen virtual pop-up keyboard for data input
PRODUCT SPECIFICATION
ECG
| A/D Resolution | 24 bit |
| Lead selection | Standard 12 leads |
| Notch filter | 50/60 Hz |
| Noise level | ≤12 μVp-p |
| Acquisition | Auto / Manual |
| Memory | 1000 Patients |
| Input impedance | ≥ 5 M Ohm, ≥ 50 M Ohm (10Hz) |
| Frequency Response | 0.05 to 150 Hz |
| CMRR | >110 dB |
| Time Constant | ≥ 3.2 sec |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV |
| Measurement | HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5) amplitude,S(V1) amplitude, R(V5)+S(V1) amplitude |
Display
| Display Format | Twelve Channel |
| Graphics Display | 1280 x 800 pixels TFT touch screen (color) |
| Display Size | 8 inch |
| On-screen display | 12 lead ECG, HR value, print mode, sensitivity, paper speed, filter, time, battery indication, background grid lines, measure data and interpretation |
Recording and Printing
| Recorder | Thermal Printer |
| Paper Speed | 5, 6.25, 10, 12.5, 25 and 50 mm / sec |
| Recording paper | Thermosensitive 210 mm × 20 m (Rolled) |
| Printing Labels | Patient Information Template, Leads, Calibration, Print Speed, Filter, Sensitivity |
| Print-out Format | Auto and Manual mode |
Power Supply
| Line Power supply | AC 110 - 240V, 50Hz |
| Power Supply Operation | AC/DC with On / Offline Battery charging |
| Battery | 14.8 V / 5200 mAh, Li-ion rechargeable |
| Battery backup | 10 hrs standby time, ≥ 3 hrs continuous print, 300 ECG waveform recording |
| Input Power | ≤ 150 VA |
General
| Data input | Touch screen and function buttons |
| Communication Interface | WiFi, Blue Tooth, LAN and USB |
| Export format | PDF, DAT, XML, BMP, and JPEG |
| Type of Protection | Class I |
| Degree of Protection | Type CF |
Physical
| Dimensions | 340 x 320 x 85 mm |
| Weight | 3.2 Kg |
Environmental Conditions
Temperature: 1°C to 50°C
Humidity: ≤ 93% non condensing
Atmospheric pressure: 500 to 1060 hPa
Graphics Display 800 x 600 pixels TFT touch screen (color)
Display Size 8 inch
On-screen display: 3/6/12 lead ECG, HR value, print mode, sensitivity, paper speed, filter, time, battery indication, background grid lines, measure data, and interpretation
Communication Interface USB
Type of Protection Class I
Degree of Protection Type CF
CONTENT OF BOX
- ECG Machine
- Limb electrodes
- Chest electrodes
- Patient cable
- Electrolyte gel
- Printing paper
- Power supply cable with adapter
Warranty : 1 Year
Country Of Origin - China
Usage instructions
-
Connect electrodes to the patient as per standard 12‑lead configuration.
-
Turn on the RMS Vesta 12EC and verify electrode connections.
-
Observe the ECG waveform on the screen and adjust filters if needed.
-
Use the built‑in printer to generate hard copies of ECG reports.
-
Enter patient information using the soft‑touch or on‑screen keyboard.
