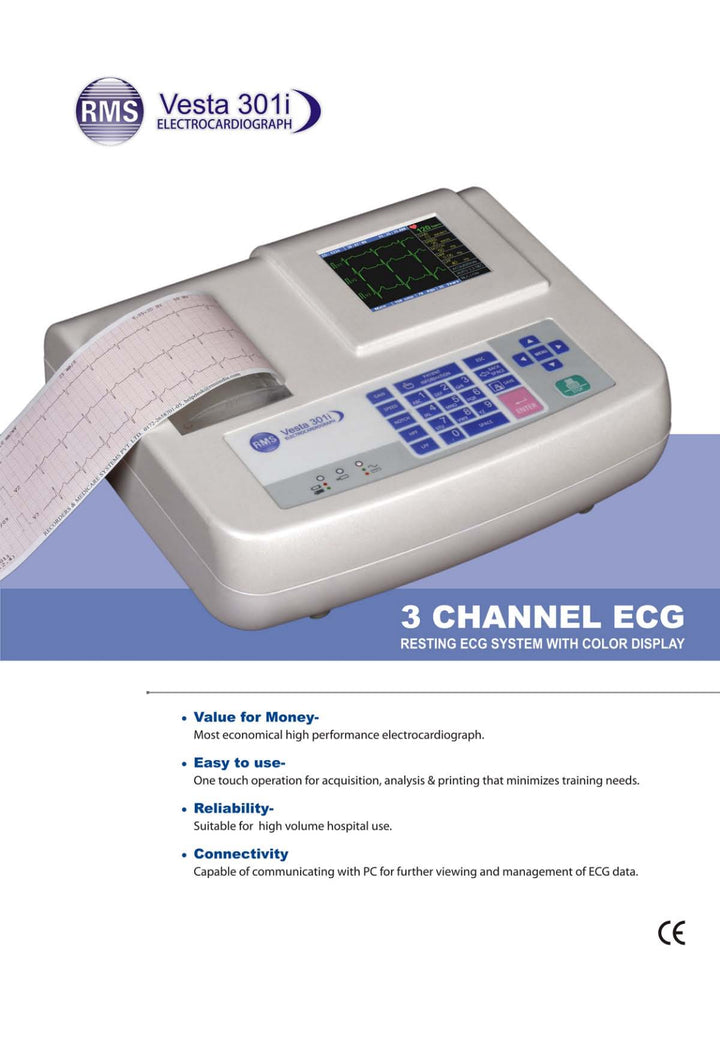

RMS ECG Machine 3 Channel Vesta 301i
Product Description
An electrocardiogram (ECG or EKG) is a test that measures the electrical signal from the heart to diagnose various cardiac problems. Electrodes are positioned on the chest to capture the heartbeat's electrical impulses. Whenever the signals are received, they are displayed as waves on a computer monitor or printer connected to the computer.
The RMS ECG Machine 3 Channel features a high-quality TFT color display and a full alphanumeric keyboard that allows the user to enter patient and clinical information. Multiple printing options are available on the ECG machine, including rhythm leads, medians, enlarged medians, visual axis, measurement, and interpretation.
Key Features
-
The device has the simultaneous acquisition of all 12 leads and has a high TFT color display for the on-screen preview of the ECG waveform.
-
It has a full alphanumeric keyboard for entering patient and clinical information.
-
The device has a digital filter to eliminate baseline drift and AC&EMG interference.
-
It also has isolation protection against defibrillators and features a real-time clock for date & time indication.
-
The device has various printing options like rhythm leads, medians, enlarged median, visual axis, measurement & interpretation, and paper-out indication.
-
The machines have internal ECG data storage for up to 20 patients.
-
Other features like USB, PC interface, and Direct A4 printing are available.
Technical Specifications
|
Type |
Manual, Portable, Automatic |
|
Lead Selection |
Standard 12 leads |
|
Application |
Clinical, Hospital |
|
Brand |
RMS |
|
Display |
3.5 inch (320 x 240 pixels) TFT color display |
|
Dimension |
288 X 238 X 85 mm |
|
Recording Mode |
Thermal array Printer 8 dot/ mm (Vertical) |
|
Frequency Response |
0.05-50Hz (-3dB) |
|
Time Constant |
3.2s |
|
Weight |
1.8 kg |
|
Input Circuit |
50uA |
|
Power supply |
220-240V, 50Hz +_ 10% |
|
Battery |
11.1V/2600 mAh, Li-ion battery charging |
|
Charging time |
3 hours |
|
Communication interface |
USB |
Content of Box
● ECG Machine
● Limb electrodes - 4
● Chest electrodes - 6
● Patient cable - 1
● Conducting tube jelly
● Fuse T 1.5 A
● Printing paper -80mm(Rolled)
● Power supply cable with adapter
Warranty -1 year
Country of Orgin -India
How to use
1. Connect the patient cables and electrodes as per the standard 12-lead ECG placement.
2. Switch on the machine and enter patient information using the alphanumeric keyboard.
3. Choose the desired recording mode (automatic or manual).
4. Ensure proper contact and check for signal quality on the display.
5. Start the ECG recording, the machine will capture 12 leads simultaneously.
6. Review waveforms on the TFT display and print the report directly on A4 or 80mm thermal paper.
7. Save the data internally or transfer via USB for further analysis or record-keeping
