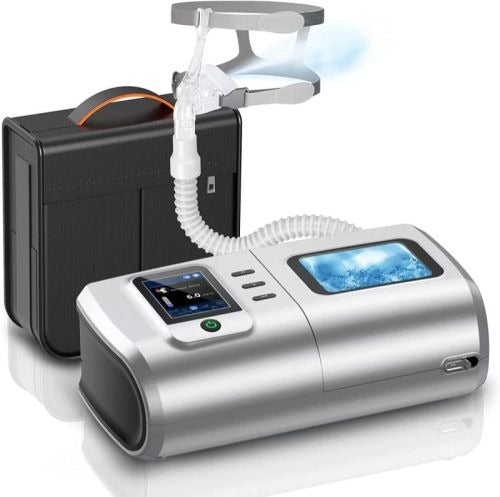

VentMed BiPAP DS8 ST30 Machine for COPD,Sleep Apnea and Snoring
Key Features
-
-
Multiple therapy modes: CPAP, Auto, S, T, ST, APCV (extended range)
-
Ultra-quiet operation (<28 dB) suitable for silent ward and home use
-
Wide pressure range: IPAP 4–30 cmH₂O, EPAP 4–20 cmH₂O
-
2.8″ TFT display with real-time therapy data
-
AST — Automatic Synchronization Technology for smooth user trigger and cycle
-
Integrated heated humidifier with 0–5 levels and 220 ml tank capacity
-
SD card data recording, plus optional cellular data transmission
-
Leak compensation, awake detection, and auto-altitude adjustment
-
Adjustable backup rate: 5–50 BPM
-
Ramp: 0–60 min
-
Inspiratory/expiratory trigger sensitivity: 1–5 levels
-
EPR (Pressure Relief): 0–3 levels
-
Automatic screen sleep mode after 15 min
-
Safety alerts: power off, mask off, system failure
-
Lightweight and portable: 1.6 kg (with humidifier)
Product description
-
| Specification | Details |
|---|---|
| Modes | CPAP, Auto, S, T, ST, APCV |
| Noise Level | <28 dB |
| Screen | 2.8″ TFT (320×240 resolution) |
| Pressure Range | IPAP: 4–30 cmH₂O, EPAP: 4–20 cmH₂O |
| Backup Rate | 5–50/min |
| I:E Ratio | 10–80 |
| Ramp | 0–60 min |
| Triggers | Inspiratory & Expiratory: 1–5 levels |
| EPR | 0–3 levels |
| Auto Altitude | Yes |
| Leak Compensation | Yes |
| Awake Detection | Yes |
| Breath Event Detection | Yes |
| Humidifier | Integrated heated (0–5 levels), 220 ml |
| Data Storage | SD Card |
| Dimensions | 28 × 14 × 9.5 cm |
| Weight | 1.6 kg |
| Power Supply | Input 100–240V, Output 24V 2.5A |
In the Box
-
VentMed DS8 ST30 main unit
-
Integrated heated humidifier
-
Breathing tube
-
Mask (depending on package)
-
Power adapter & cable
-
SD card
-
User manual
-
Carry case
Warranty
-
1-year manufacturer warranty included.
Hospital / Clinical Benefits
-
Improved synchrony in compromised user through AST waveform adaptation
-
Stable therapy even with leaks
-
Advanced monitoring: real-time IPAP, EPAP, tidal volume, leak, and respiratory rate
-
Flexible treatment across chronic conditions like obstructive sleep apnea, central apnea, and chronic respiratory failure
-
Efficient workflow with intuitive interface and auto-start/stop
-
Quiet operation ensures comfort during overnight stays
-
Reliable safety controls with automatic shutoff and alerts
Application Areas
-
COPD and chronic respiratory failure
-
Obstructive & central sleep apnea
-
Overlap syndrome
-
Obesity hypoventilation syndrome
-
Post-operative respiratory support
-
Snoring with hypopnea episodes
-
Intermediate/step-down ICUs
-
Emergency & respiratory care units
-
Long-term home ventilation setups
Usage Guide
-
Connect power and set up tubing, mask & humidifier.
-
Fit the mask properly with minimal leaks.
-
Select required mode (S/T/APCV/CPAP).
-
Set pressure, backup rate, and ramp per prescription.
-
Start therapy and monitor comfort and synchrony.
-
Adjust trigger/cycle sensitivity if necessary.
-
Use the SD card to record and review therapy data.
Buy Ventmed BiPAP ST30 Online
The VentMed DS8 ST30 BiPAP Machine is designed for managing COPD, Sleep Apnea, Hypoventilation, and Snoring. It’s a clinical-grade non-invasive ventilator equipped with advanced Automatic Synchronization Technology (AST), high-precision leak compensation, and hospital-level monitoring features. The machine delivers stable, synchronized, and comfortable ventilation. It is engineered for settings such as respiratory wards, ICUs (step-down), emergency care, sleep labs, and long-term home ventilation programs where accuracy, user comfort, and safety are essentialHow long may a user continue to use BiPAP?
A user may use BIPAP or mask ventilation indefinitely.
Can BiPAP enhance lung health?
BiPAP machines allow your lungs to expel extra carbon dioxide and deliver oxygen to your body more effectively. Research has indicated that regular use of a nightly BiPAP device can reduce dyspnea, improve quality of life in persons with COPD and higher carbon dioxide levels, and increase long-term survival.
