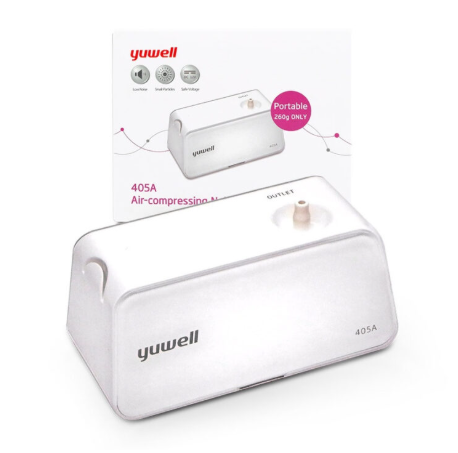

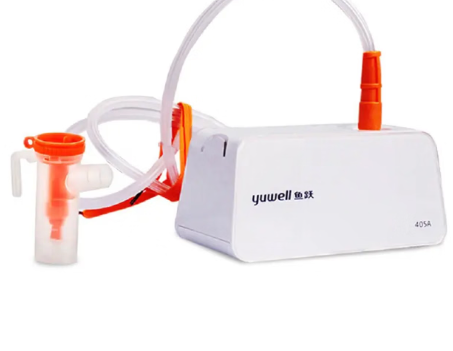

Yuwell Air-compressing Nebulizer 405A

PRODUCT DESCRIPTION

The 405A Compressor Nebulizer is intended to aerosolize medications for inhalation by the patient for respiratory disorders. It is a new generation of compressor nebulizer manufactured by the company based on innovation and improvement of similar products at home and abroad.

PRODUCT SPECIFICATION

• Power:  Input: AC100-240V~ 350mA, 50/60Hz
•              Output: DC12V, 1000mA
• Maximum nebulization rate: ≥0.2mL/min
• MMD: 3.9μm
• Percentage of nebulized particles with diameter less than 5μm ＞65%
• Maximum pressure of compression pump: ≥0.1MPa

• Free flow of compression pump: ≥3.5L/min
• Noise: ≤55dB(A)
• Net weight: 260g (unit only)
• Size: 13cm (l) × 6.5cm (w) ×6.8cm (h)

• Electrical safety requirements: Class II equipment, Type B applied part

• Working system: intermittent operation – working for 20 minutes with an interval of 40 minutes.
• Normal working conditions:
•                  Environmental temperature: 10℃～40℃

•                  Relative humidity : 30%～75%
•                  Air pressure: 86KPa～106KPa
• Restrictions on transportation and storage:
• Environmental temperature: -40℃～+55℃
• Relative humidity: 10%～93%
• Air pressure: 70KPa～106KPa
• Test conditions: The environmental temperature is 20℃ and the humidity is 53%. The test distance from the nebulizing aerosol nozzle is 10cm.
• Test solution: 0.9% saline

Warranty: 1 Year
