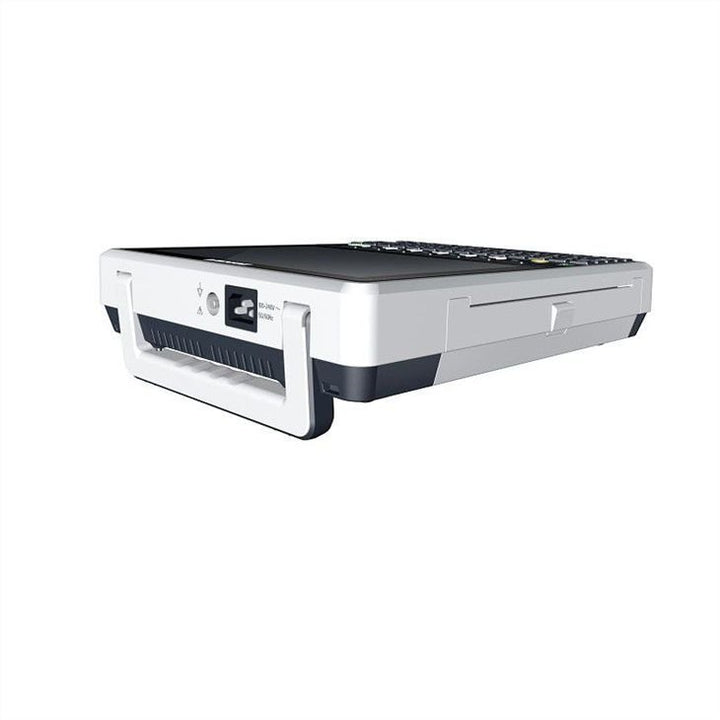

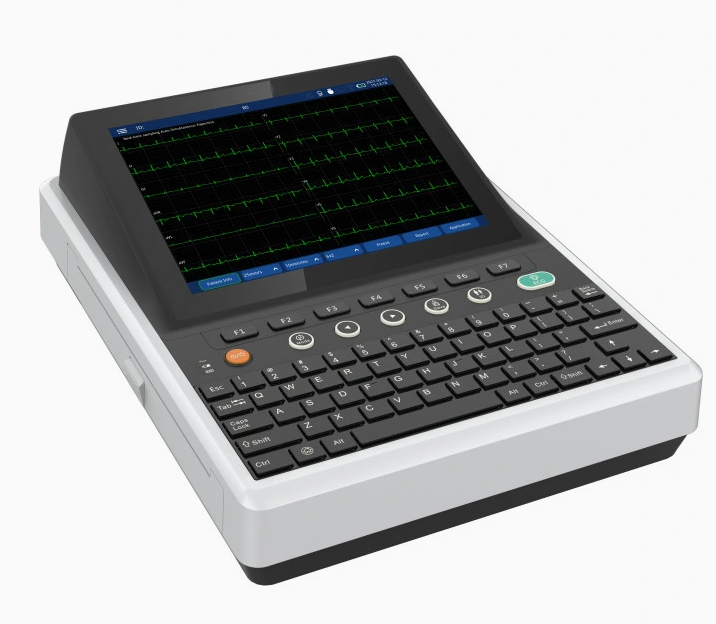

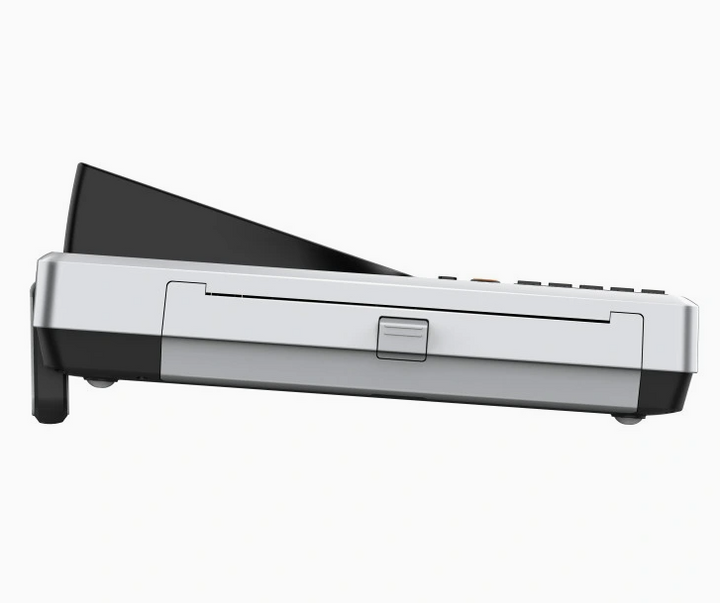

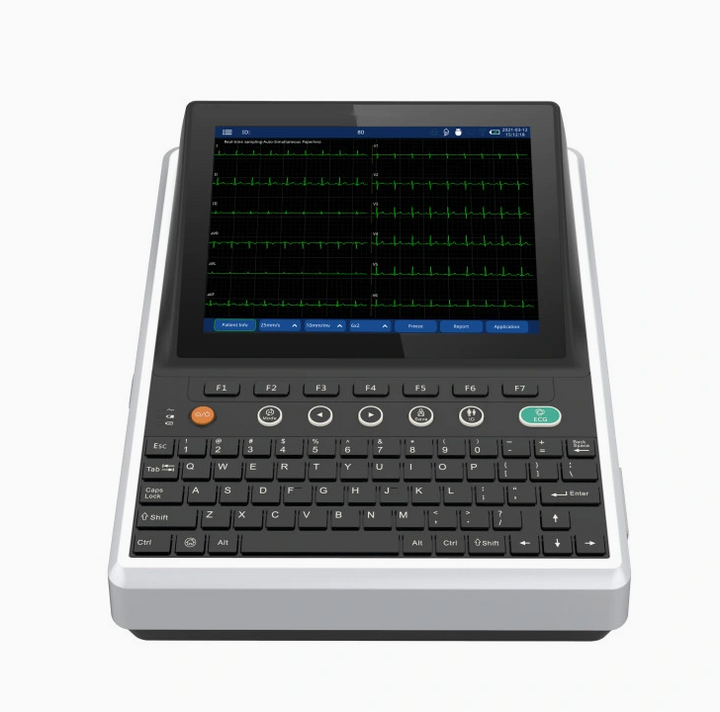

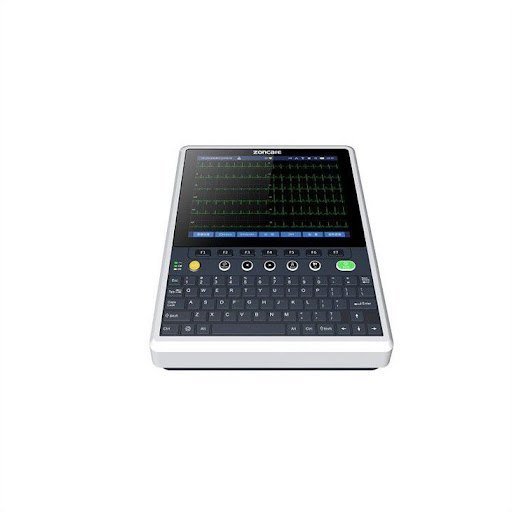

Zoncare U90 Classic 12-Ch ECG Machine



Features

● iMAC 120 can be used for Adult, Pediatric and newborn

● 12-lead synchronous acquisition and display

● 10.4inch High Resolution Touch Screen (1024x768)

● Hidden handle design ,easy to carry,support the adjustment of screen angle

● Support physical full keyboard and touch the soft keyboard at the same time, support the keyboard and the handwriting input patient information

● 4400mA Lithium battery, DC>8 hours

● Thermal Print paper: 210/216mm, support A4 paper size print

● Machine Size: (L × W × H) 285mm×360mm×94mm: 3.7kg

● Data stage: 1000 sets



Performance

● 32000Hz sampling Rate

● A/D converter: 24 bits

● Frequency Response: 0.01-350Hz.

● Support bipolar pacing detection

● Glasgow ECG algorithm- one of the world's best ECG algorithm

● Support lead-off alarm

● Support reanalysis based on modified patient information

● Support TVCG and VCG function are optional. The VCG is the foundation of ECG waveform. It has significant performance in diagnosing myocardial infarction, bundle branch block and ventricular hypertrophy
